FRETS.COM:
Chasing the Mystery Buzz
Can cause interference
Nut Slot
© Frank Ford, 11/1/98; Photos by FF, October 1998
Nuts and nut slots provide a number of items for discussion. Check out the article,
"Nuts" for some more information on nut design.
Buzzing and dullness or fuzziness of tone can come from crud that builds up in the
nut slots:

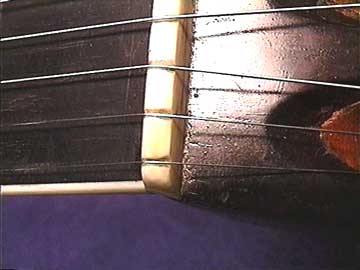

Here you can see the dark dirt and stuff in the slots. The slots themselves are a
bit wide, and could allow the string to roll around a little, losing valuable vibrational
energy, and possibly causing an interference buzz at the peghead.
If the nut slot does not slant back down toward the peghead, the string may not ride
on the leading edge toward the first fret. In that circumstance, it's very possible
to generate a little buzzing or fuzzy tone.
These slots are WAY too deeply notched into the nut:
That doesn't mean the string WILL buzz, but it does give the impression that the
notches weren't particularly carefully cut, and that the string may be rattle against
the walls of the slot. It is not unusual for the string to rattle at the back edge
of such slots, giving the symptom of a tiny whiny high pitched buzz that rings sympathetically
and appears to come from the peghead.
By the way, the photo is not backward. It's a lefty guitar, a Taylor 710.
When notching nuts, it pays to be aware of the string's path behind the nut toward
the tuner post. The string should bear all along the nut slot. If the string is held
up out of the slot at the back edge, then it can rattle against the sides of the
slot. In other words, the string path across the nut should be at an angle that splits
the difference between the plane of the fingerboard and that of the peghead.
