I'm just getting set to make another batch of Jack the Gripper tools, and since this will be a sizeable one (500-700) I thought I'd better take Tibor's advice.

I met Tibor about a year ago - he's a local one man machine shop, and he does high precision (tenths, you know) machining of mostly tiny parts for high tech manufacturing or watchmakers. He runs four cam-driven Swiss screw machines, and he really knows his stuff. He was kind enough to look over my process, and while he generally approved, he had a suggestion to save a bunch of time. He said that rather than knurling and parting off my little gripper rollers, that I could have lengths of O-1 drill rod knurled and then I could saw the 1/4" sections of quickly and with less cleanup needed than when I parted on the lathe. He'd provide me a reference to a shop that could do the knurling.

Well, being up for a little challenge and always wanting to learn new process, I decided to have a go at it myself. So I spent some weeks pondering how I might do it, and came up with this routine, using the same turret style knurling tool I'd used in the tailstock of the lathe:

Argos Opening Times

To get the latest information on the opening hours of your local Argos store, you can use their store finder tool. Listed below are the general opening times for stores throughout the UK. However, some stores follow different argos opening times. If you're in a hurry, you can also use their website to find out the exact time of day that a store is open. If you're worried about missing a certain item, you can order it online and collect it later.

When shopping in Argos, you may want to check their opening hours before you go. They're generally open from 9:00 AM to 8:00 PM Monday to Friday, with a few exceptions. Their hours may vary, however, during the weekend. If you're visiting on Christmas Eve, they're usually open from nine in the morning until 6pm, while on Boxing Day they're open 12 hours. If you're in a hurry on Christmas Day, you can also shop from the comfort of your own home.

For your convenience, Argos has store locators in most cities. Simply enter your city, state, and zip code to find stores near you. The store locator will give you directions and contact information for nearby Argos. You'll be able to find the store's phone number and address, as well as its operating hours. Google Map is a very helpful tool when it comes to finding the location of your nearest Argos store.

I made an insert for the holder's shank and drilled it to match the diameter of my O-1 drill rod (drill size "B"). I figured on feeding the rod in from the back of the tool, so I made a holder to fit my Aloris tool post:

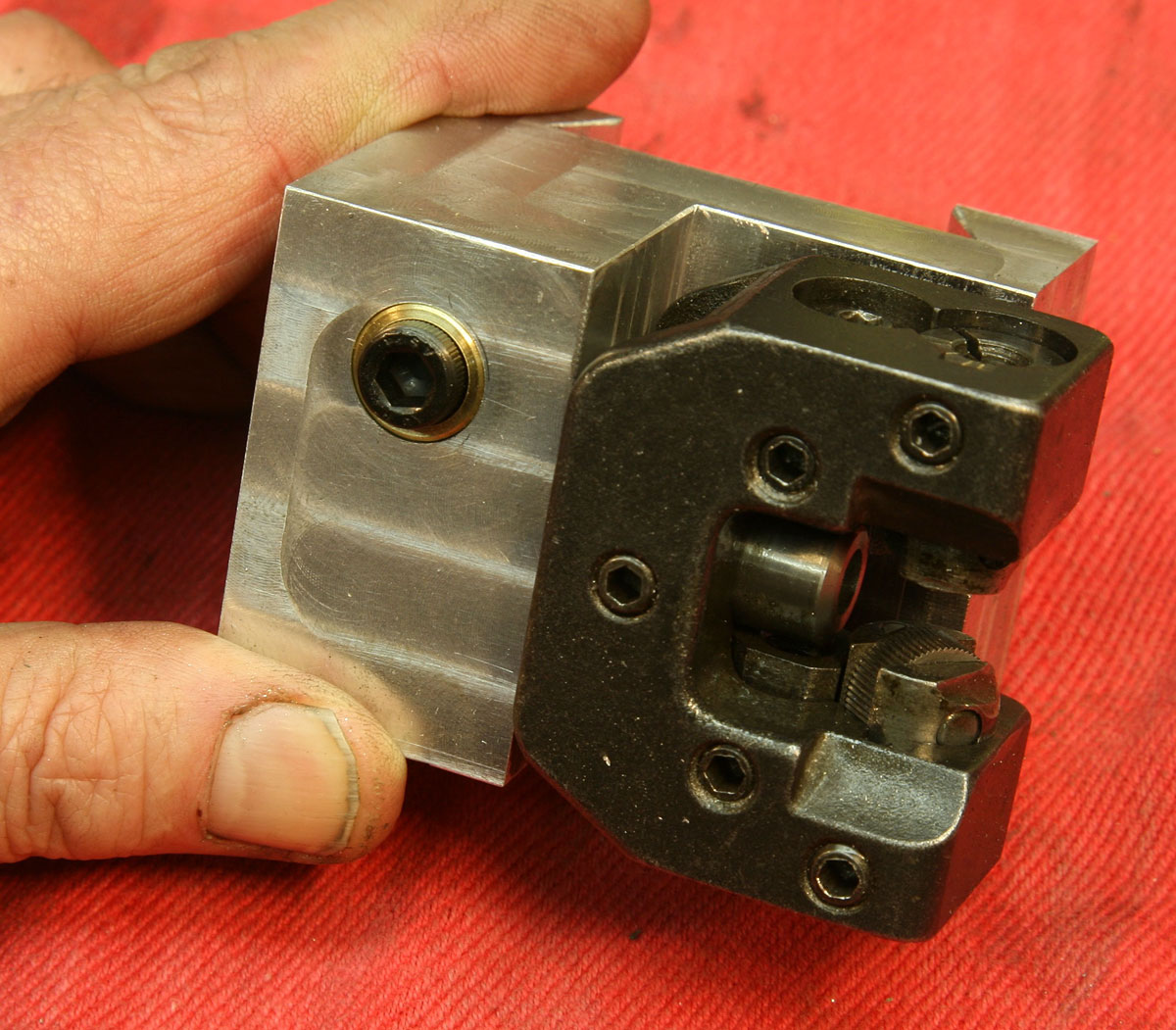

The tool is held in place with a split cotter:

I made the cotter the same way as I did the one on my Tailstock Tool Holder - you can go to that article if you want more detail.

OK, so here's how it goes:

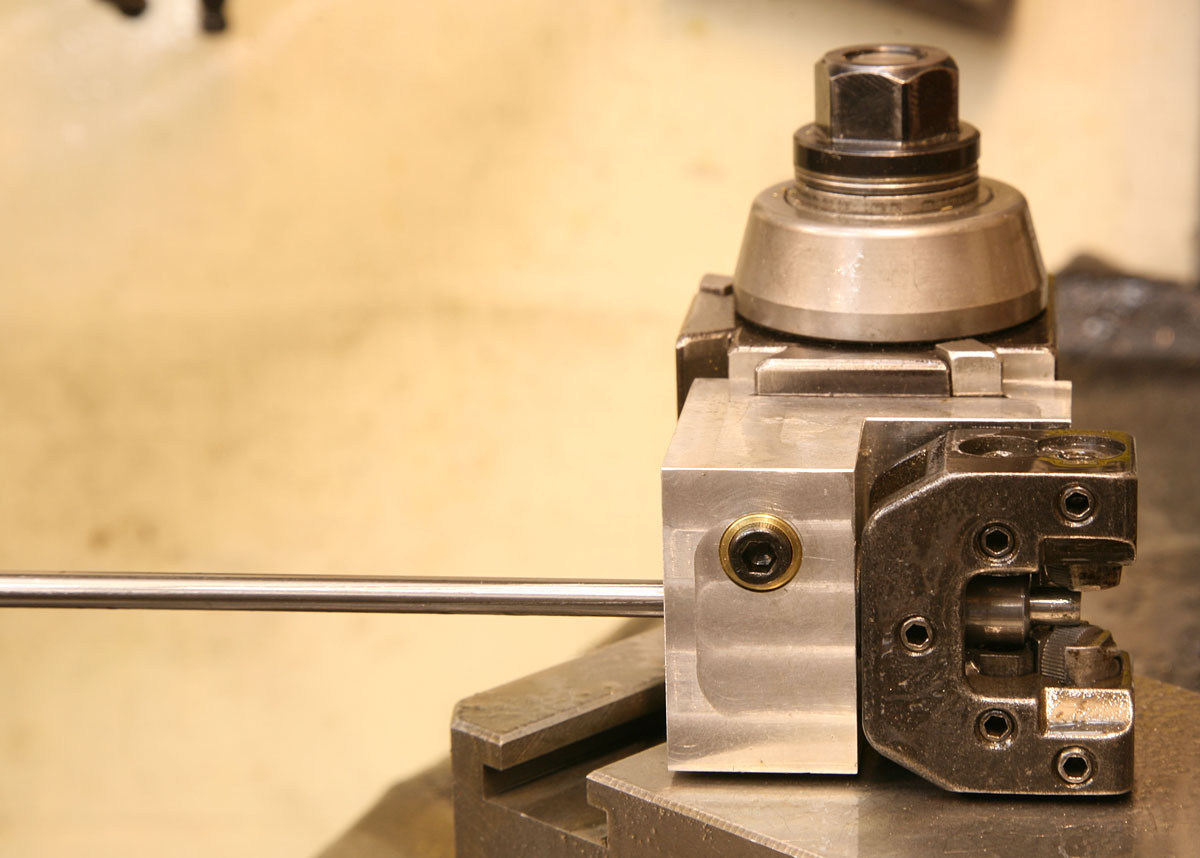

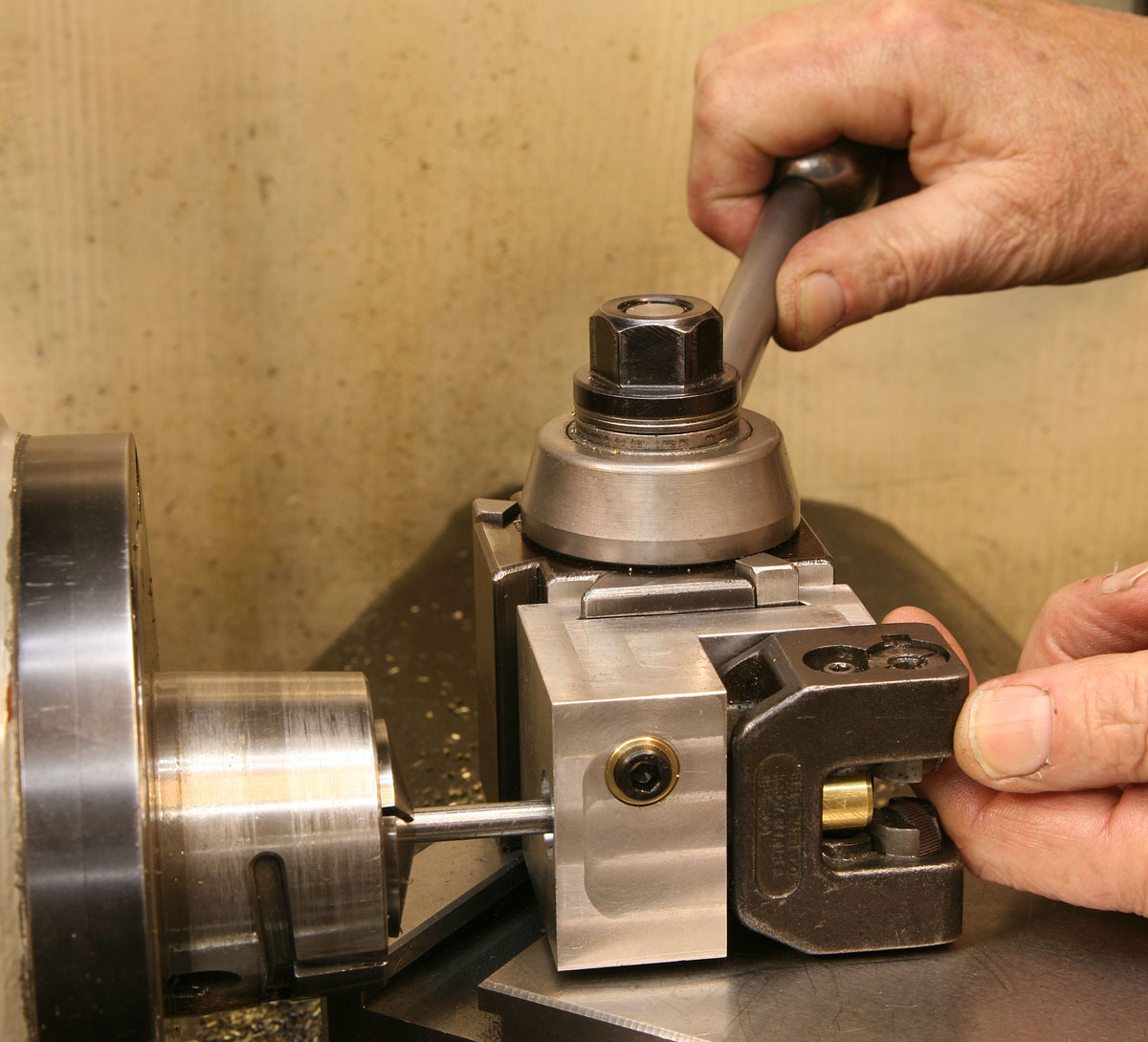

First I align the tool with a short section of drill rod sticking out from the collet;

It's easy enough, I just leave the toolpost unlocked, and raise the holder so it mates up nicely with the rod, and move the cross feed handle to achieve horizontal alignment.

I made the holder with the axis of the tool is directly in the center of the holder, so I could flip it over and keep the alignment. In order to get the height set the same each time, I simply use a little precision spacer block:

Now I can take the holder on and off the tool post without fear of changing adjustment.

The drill rod comes in 36" lengths, and my lathe can only handle 18" between centers, so I took off the tail stock, using my little chain hoist to handle the weight an hang it out of the way.

With about 18 inches of rod sticking out from the collet, I run the carriage back, insert the rod, tighten the collet and prepare to start the process"

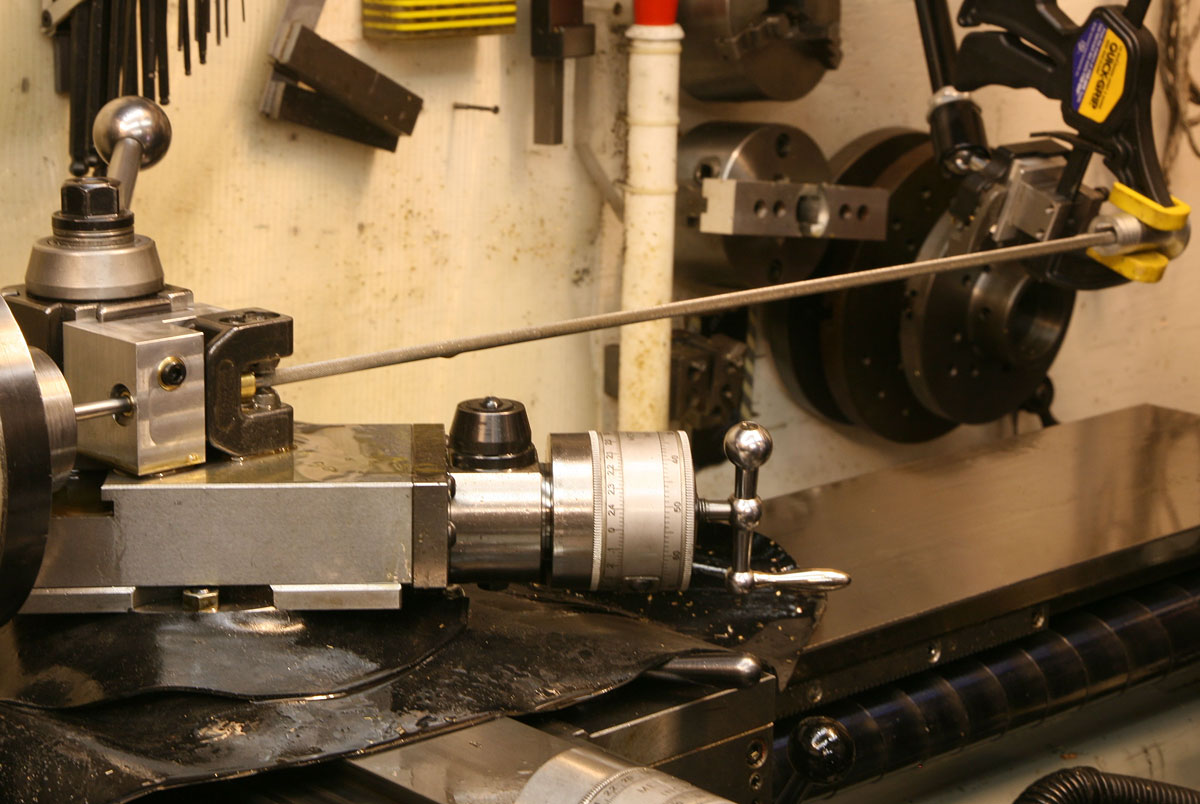

Here it is, ready to cut:

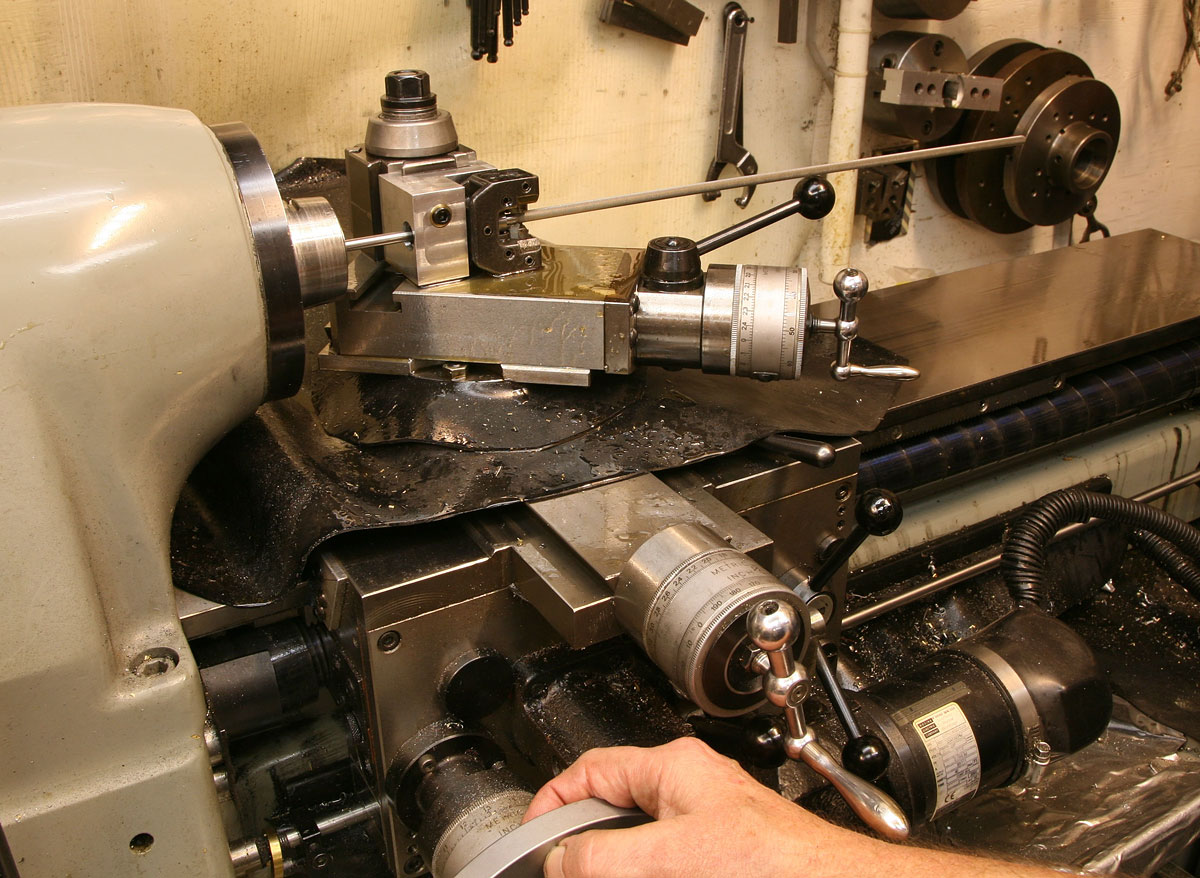

Running the lathe at 300 RPM and the power feed at an appropriate speed (determined by trial and error) I knurl as far as I can toward the headstock:

Then, I turn the lathe off, loosen the collet and simply drag more of the rod out as I move the carriage to the right:

Again, I cut toward the headstock as far as I can go:

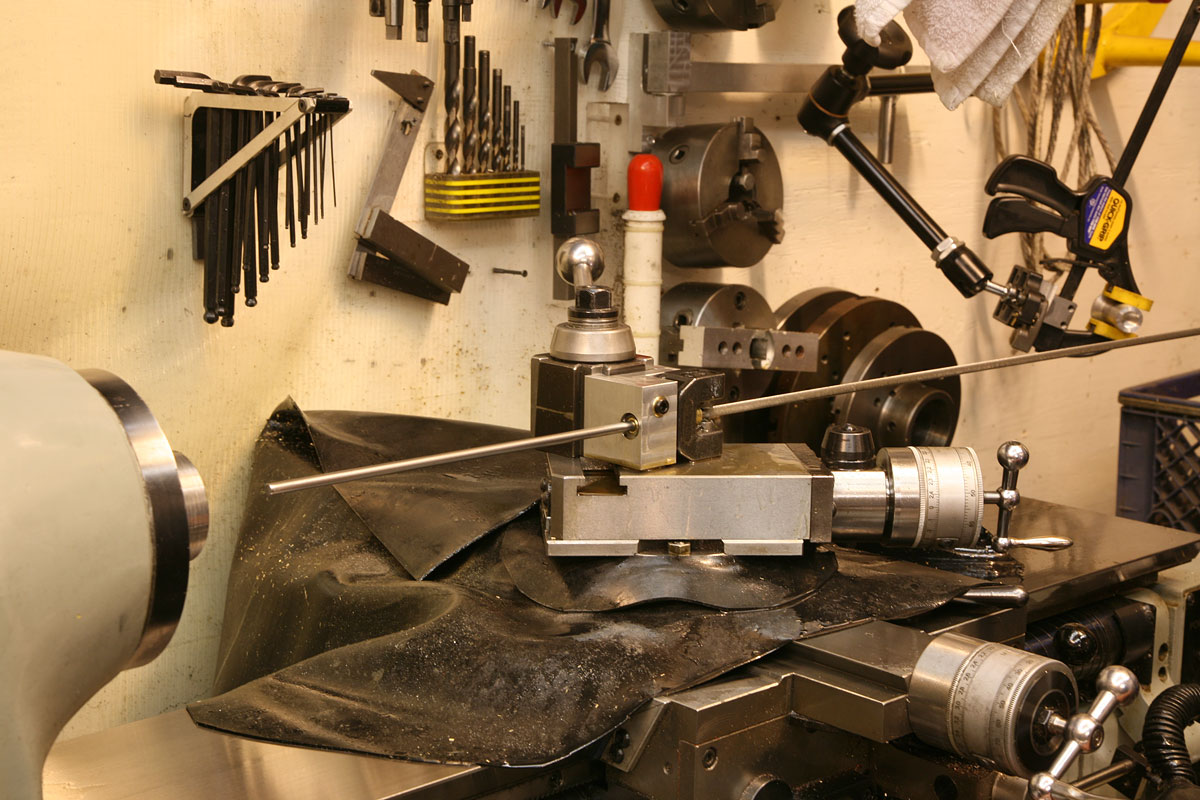

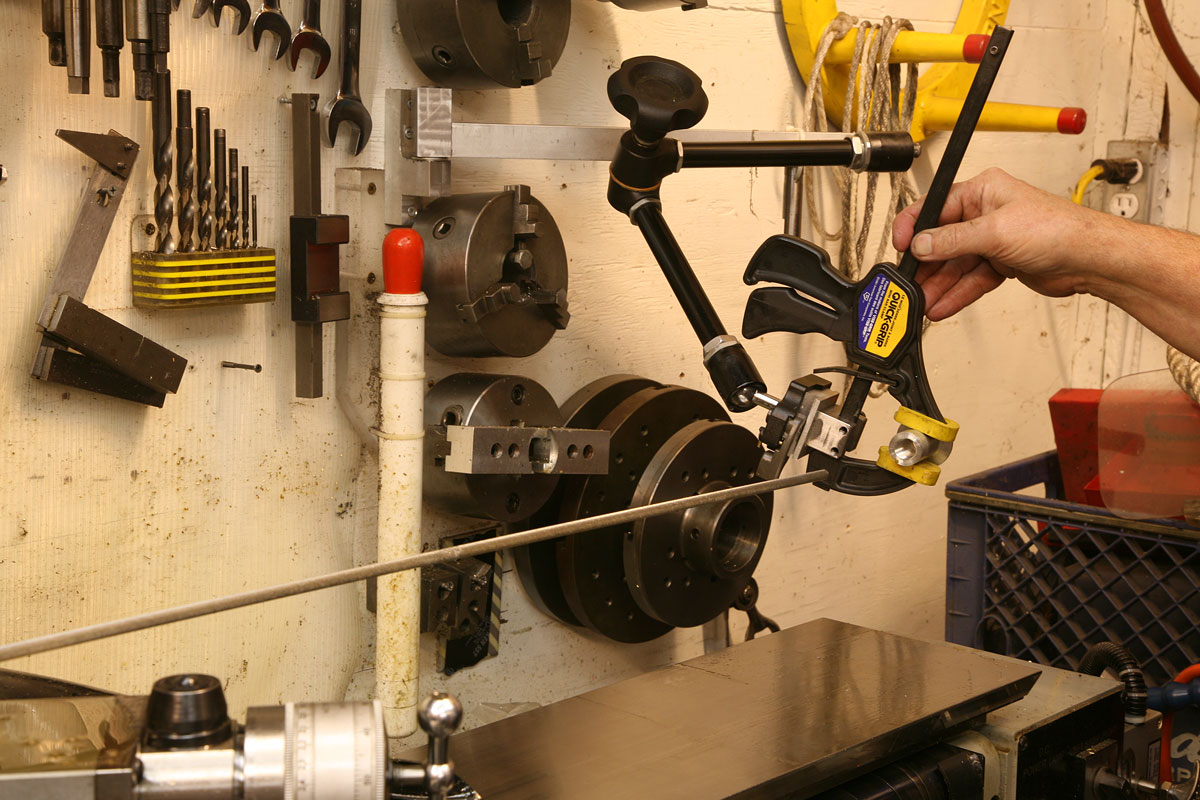

At the right end of the rod, you can see a simple aluminum tube that serves to keep the rod from whipping. It's held in the same "Magic Arm" that I use for my camera support, and it swings away easily without losing adjustment when I don't need it in place:

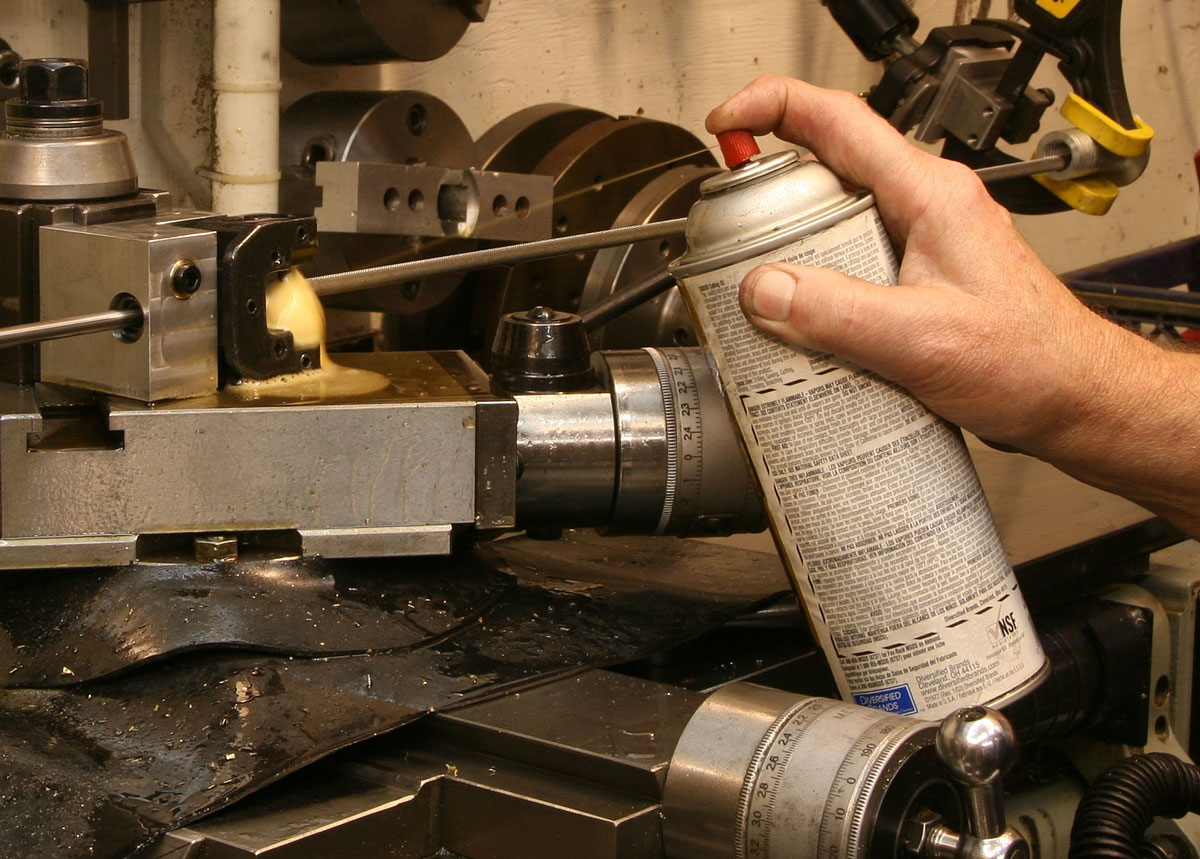

As the work proceeds, I keep the knurls lubricated with cutting oil:

I wiped most of the oil off for the pictures.

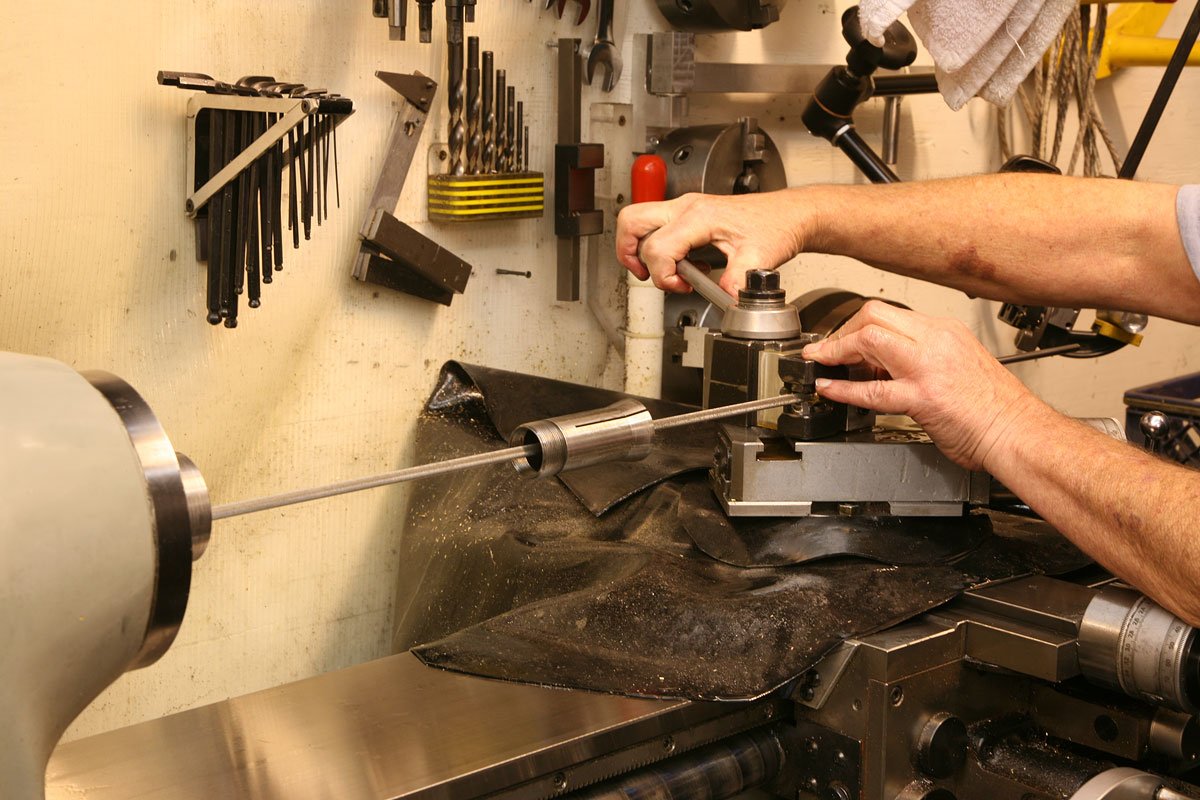

Once again, I loosen the collet, and drag the rod out - this time all the way out:

Taking the holder off the toolpost, rod and all, I flip the whole thing over, stick 1/4" collet on the freshly knurled end, and lock the tool holder down:

This time I run the rod as far to the left into the collet as I can, lock the collet, reverse the feed, and knurl outward, to the right:

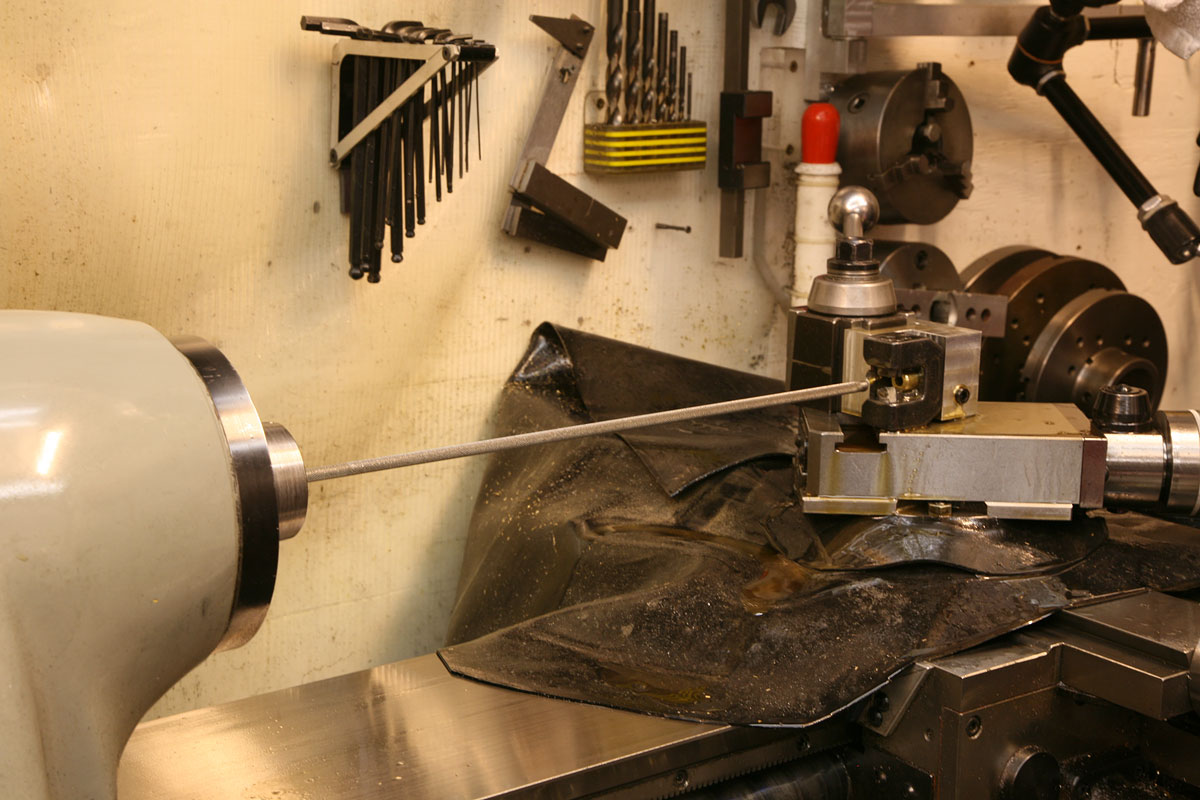

Running right off the end, my knurling is complete:

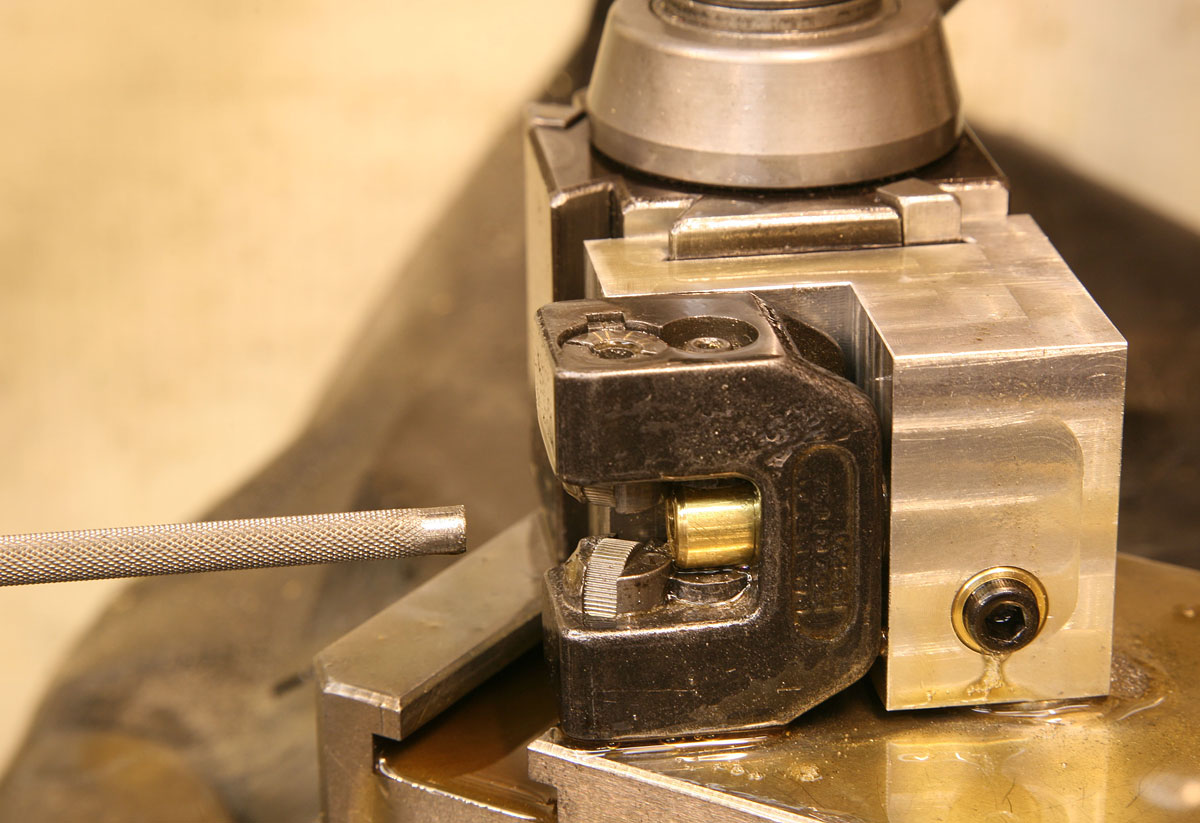

I've managed to knurl the entire length of the rod with only about 3/8" of the end getting boogered up as it loses support:

Here are a couple of shots of the final product:
